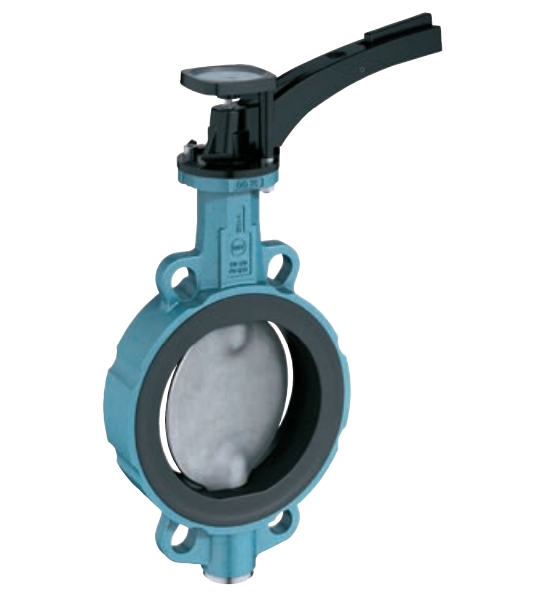

Z 011-A therm Wafer Type valve with integrated thermometer
제  조 사 : Gebr. Bröer GmbH
사용범위 : DN 20 - DN 200
용      도 : A unique valve series with integrated thermometer
리스트

상세정보 Detail View



Technical data

Nominal diameter:

DN 20 – DN 200 (aveilable only with hand lever)

Face-to-face:

EN 558 Series 20
ISO 5752 Series 20
API 609 Table 1

Flange accommodation:

EN 1092 PN 6/10/16
ASME Class 150

Slip-on flanges:

EN 1092

Weld neck flanges:

EN 1092

Flange Surface Design:

EN 1092 Form A/B
ASME RF, FF

Top flange:

EN ISO 5211

Marking:

EN 19

Tightness check:

EN 12266 (Leakage Rate A)
ISO 5208, Category 3

Temperature range:

-20°C to +130°C (depending on pressure, material and medium)

Max. Operating pressure:

max. 16 bar

Z 011-A therm Wafer Type valve with integrated thermometer
제  조 사 : Gebr. Bröer GmbH
사용범위 : DN 20 - DN 200
용      도 : A unique valve series with integrated thermometer



Technical data

Nominal diameter:

DN 20 – DN 200 (aveilable only with hand lever)

Face-to-face:

EN 558 Series 20
ISO 5752 Series 20
API 609 Table 1

Flange accommodation:

EN 1092 PN 6/10/16
ASME Class 150

Slip-on flanges:

EN 1092

Weld neck flanges:

EN 1092

Flange Surface Design:

EN 1092 Form A/B
ASME RF, FF

Top flange:

EN ISO 5211

Marking:

EN 19

Tightness check:

EN 12266 (Leakage Rate A)
ISO 5208, Category 3

Temperature range:

-20°C to +130°C (depending on pressure, material and medium)

Max. Operating pressure:

max. 16 bar
